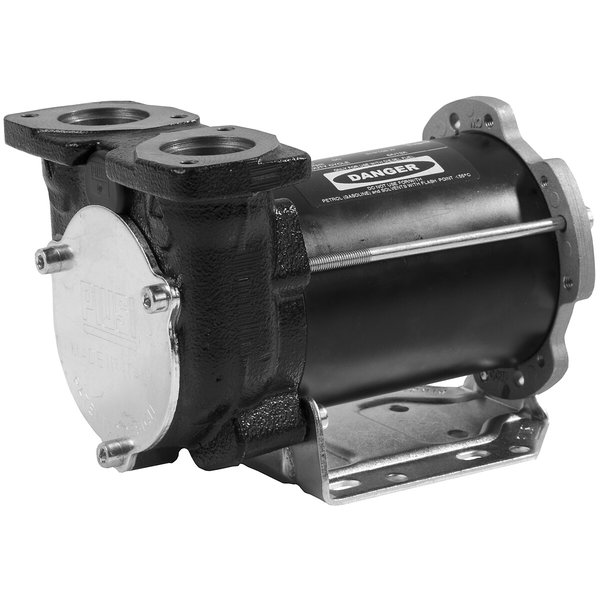

FUEL PUMP 12/24V

SKU:
CBA12244050
SEK 2,420.00 / PC
INCL. VAT 25%
Item available
Product warranty 24 months
  • Piusi BP3000
  • 12 V / 24 V
  • flow rate 50 l/min (24 V), 30 l/min (12 V)
  • suction height 2 m
  • 2 m battery cables
  • max. continuous duty cycle 30 min
  • max. time in by-pass 2 min
  • self-priming rotary vane pump
  • equipped with a by-pass valve
  • can be mounted vertically or horizontally
  • max. pressure 1.5 bar
  • 3/4" BSP 90° outlet on the suction side, 3/4" BSP 90° female thread outlet on the discharge side
  • NBR gasket
  • for diesel
  • switch
  • power 310 W 13 A (24 V), 80 W 6.5 A (12 V)
  • operating temperature -20...+50 °C
  • protection class IP55
  • noise level 70 dB
  • made in Italy
More Information
Package length (cm) 12.5
Package width (cm) 22.4
Package height (cm) 15.2
Gross weight (kg) 3.646000
EAN 8050031028919
